Sysadmin Teleport - SSH for teams/distributed

Discussion in 'System Administration' started by Colin, Apr 26, 2017.

Tags:
  1. Colin

    Colin Premium Member Premium Member

    111
    33
    28
    Oct 7, 2015
    Sheffield UK
    Ratings:
    +83
    Local Time:
    10:44 AM
    1.11.#
    MariaDB 10.1.#
    While on a morning of ci/cd/container/kubernetes reading I stumbled on this:
    http://gravitational.com/teleport/


    I have no use for it as a team of one, but someone might.

    • Informative Informative x 2
    • Like Like x 1
  2. eva2000

    eva2000 Administrator Staff Member

    30,196
    6,789
    113
    May 24, 2014
    Brisbane, Australia
    Ratings:
    +10,144
    Local Time:
    7:44 PM
    Nginx 1.13.x
    MariaDB 5.5
  3. eva2000

    eva2000 Administrator Staff Member

    30,196
    6,789
    113
    May 24, 2014
    Brisbane, Australia
    Ratings:
    +10,144
    Local Time:
    7:44 PM
    Nginx 1.13.x
    MariaDB 5.5
    I started playing with Teleport and definitely something useful :D

    Example setting up root user with Telesport SSH access via 2FA an auto generated url will created which you access via web browser to setup root user password + 2FA
    Code (Text):
    tctl users add $USER
    Signup token has been created and is valid for 3600 seconds. Share this URL with the user:
    https://cmm-node:3080/web/newuser/296cc53ee180f0572b0ef415709a00c6

    NOTE: make sure 'cmm-node' is accessible!


    Code (Text):
    tctl users ls
    User Allowed logins
    ---- --------------
    root root

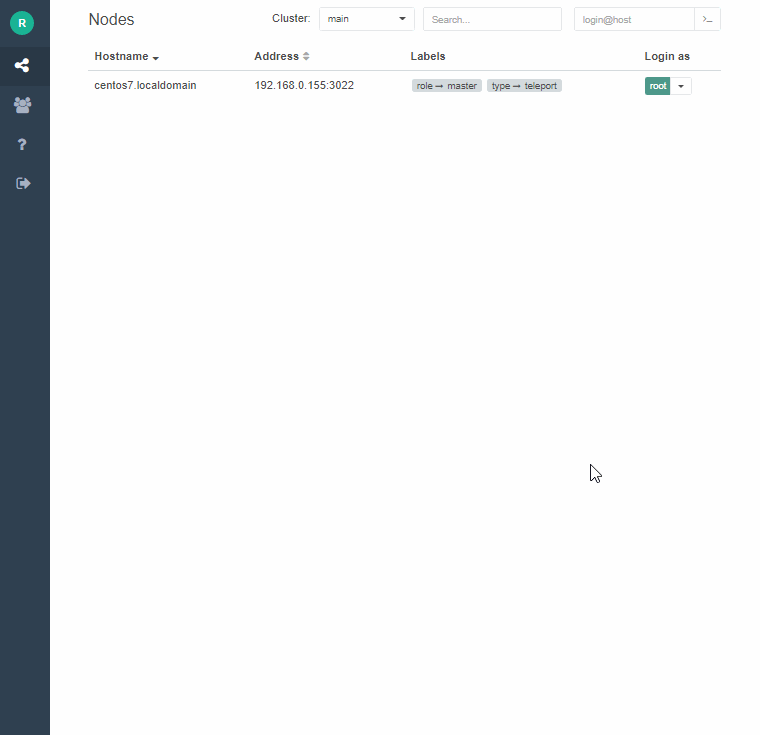

    Once signed up you're greeted with listing of your server(s) users.


    Clicking on Login as root user button will automatically SSH login you into your server via your web browser :)

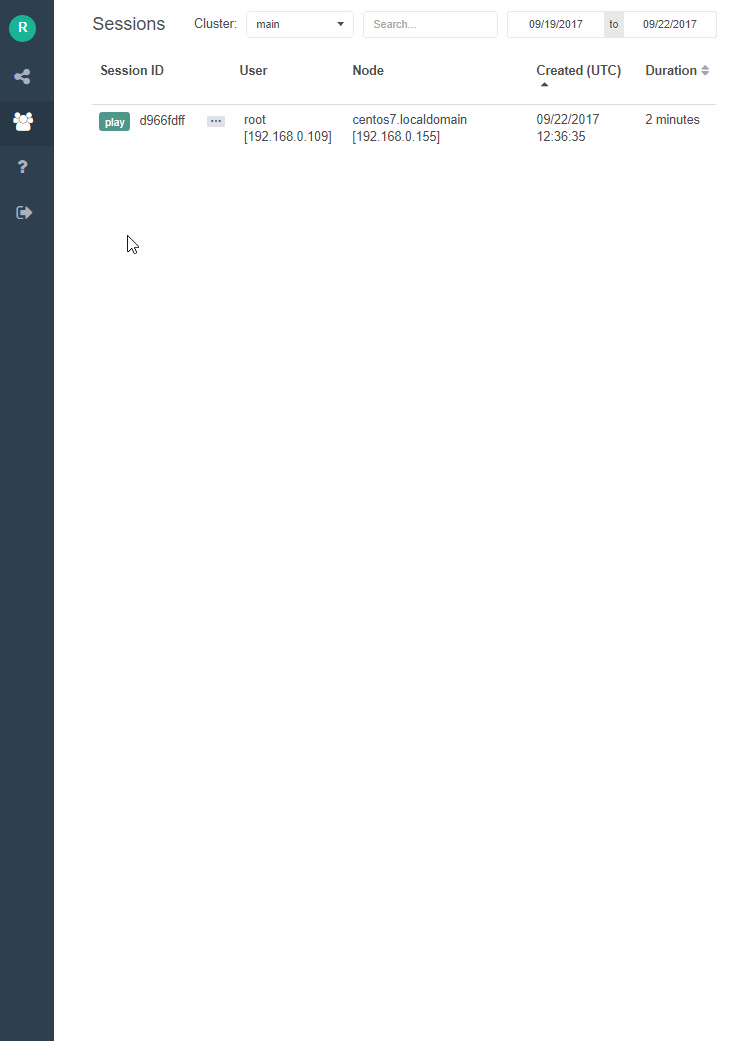

    You can lookup the history of your SSH sessions


    Notice the play button. Clicking on it allows you to replay your SSH session as a video style clip :cool:


    You can also login via tsh command line via Teleport which will prompt for root password you set + 2FA token.
    Code (Text):
    tsh --proxy=localhost ssh localhost
    Enter password for Teleport user root:
    Enter your OTP token:
    534771


    Listing Teleport clusters
    Code (Text):
    tsh --proxy=localhost ls
    Node Name           Node ID                              Address            Labels
    ------------------- ------------------------------------ ------------------ ------------------------------------------------------------------
    centos7.localdomain c5da-c1b0-4be0-b64e-56e25 192.168.0.155:3022 arch=x86_64,hostname=centos7.localdomain,role=master,type=teleport



    From http://gravitational.com/teleport/docs/user-manual/
    Teleport Ports Used
    Port Service Description
    3022 Node SSH port. This is Teleport's equivalent of port #22 for SSH.
    3023 Proxy SSH port clients connect to. A proxy will forward this connection to port #3022 on the destination node.
    3024 Proxy SSH port used to create "reverse SSH tunnels" from behind-firewall environments into a trusted proxy server.
    3025 Auth SSH port used by the Auth Service to serve its API to other nodes in a cluster.
    3080 Proxy HTTPS connection to authenticate tsh users and web users into the cluster. The same connection is used to serve a Web UI.

    Last edited: Sep 22, 2017
    • Winner Winner x 1
  4. eva2000

    eva2000 Administrator Staff Member

    30,196
    6,789
    113
    May 24, 2014
    Brisbane, Australia
    Ratings:
    +10,144
    Local Time:
    7:44 PM
    Nginx 1.13.x
    MariaDB 5.5
  5. eva2000

    eva2000 Administrator Staff Member

    30,196
    6,789
    113
    May 24, 2014
    Brisbane, Australia
    Ratings:
    +10,144
    Local Time:
    7:44 PM
    Nginx 1.13.x
    MariaDB 5.5
    Example of updating Centmin Mod code via git pull instead of centmin.sh menu option 23 submenu option 2.

    Code (Text):
    cmdir
    git pull
    ./centmin.sh
